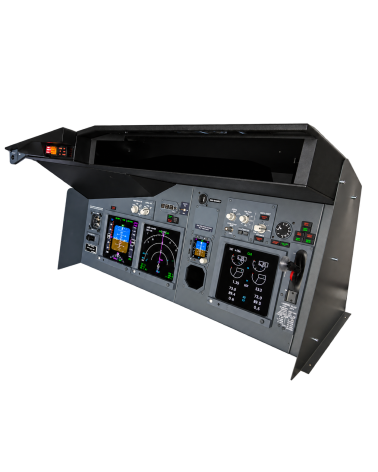

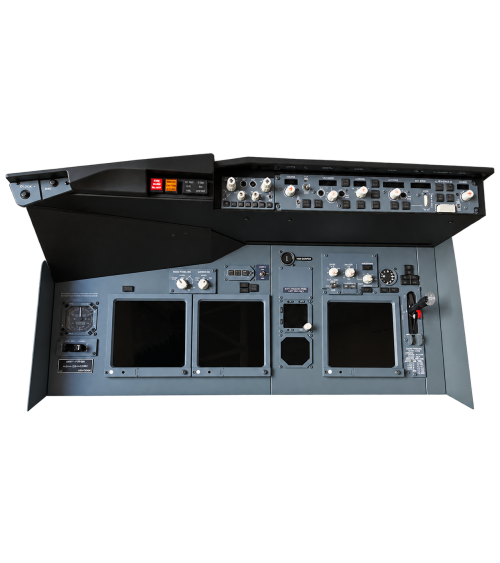

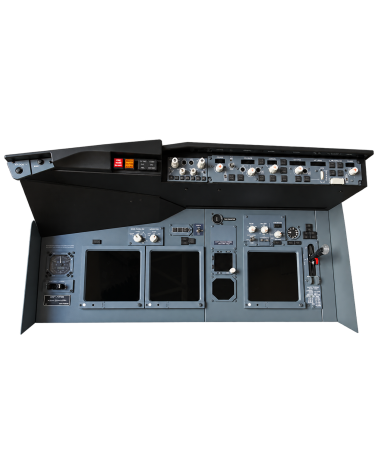

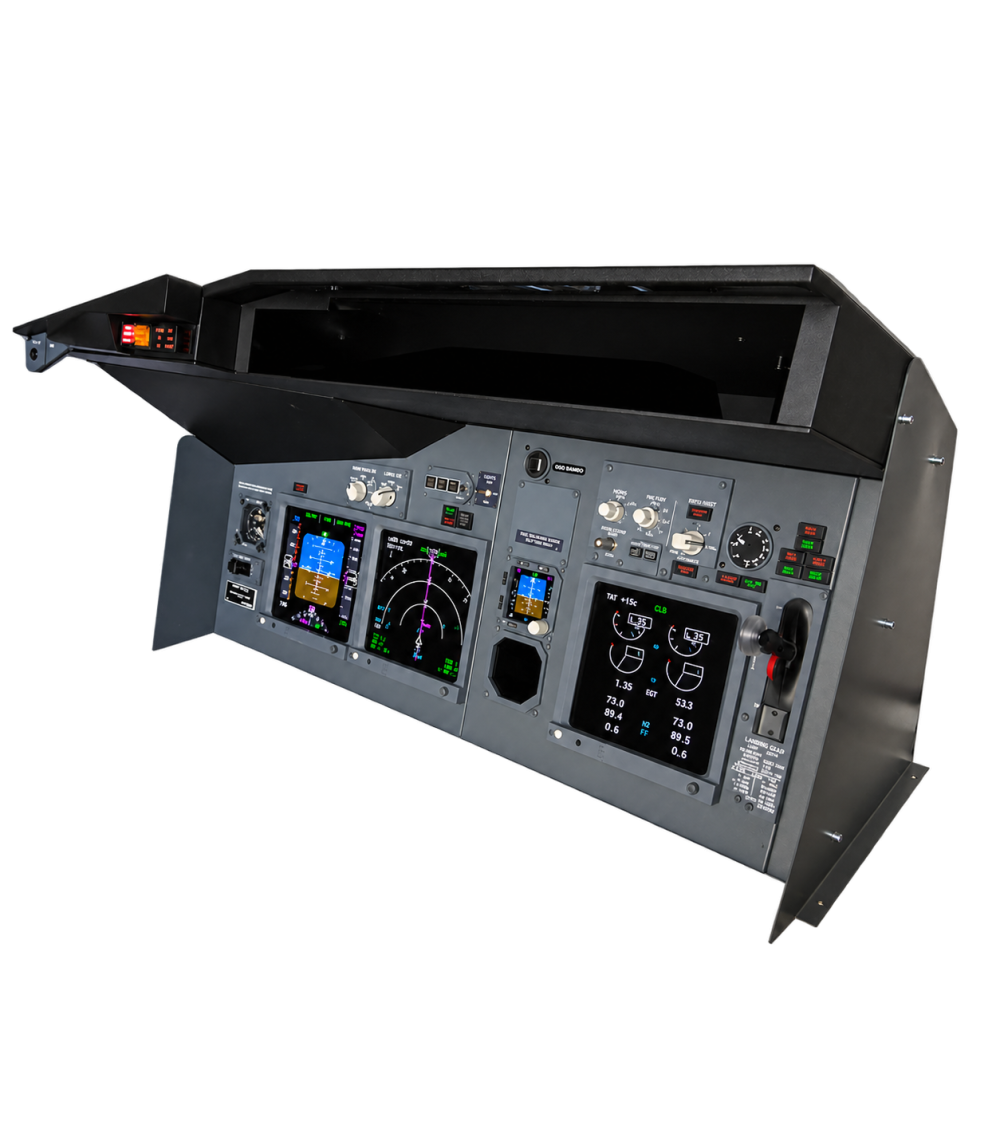

MIP in Single Configuration Desktop Ethernet

$ 4,991.91
Tax excluded

MIP in Single Configuration Desktop Ethernet for the Boeing 737NG Simulator - Alpha

EDC Rotaries

Key Features


  • Scale 1:1
  • Metallic structure and casings. Grey RAL 7011
  • Module fully assembled and mounted, ready to be used. Plug & Fly
  • Glareshield made in aluminum Matte Black.
  • TFTs included and fully mounted.
  • Replica Injection Plastic Knobs
  • Warm White Backlighting

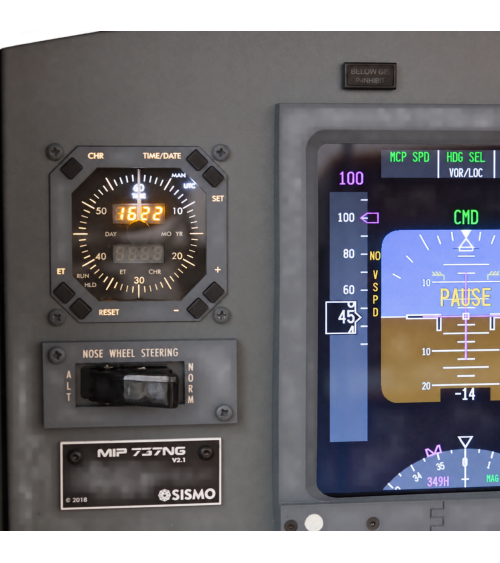

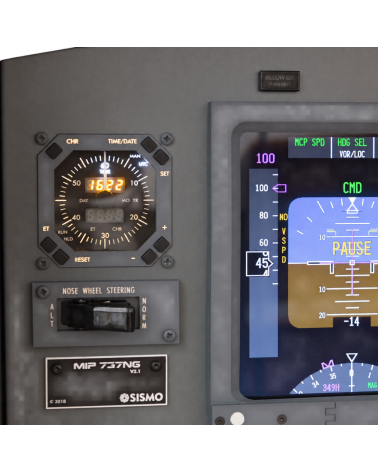

  • Operative gauges with backlight
  • Warm White Backlighting
  • Ethernet connection, very stable and used in professional market
  • Electronic Baseplate to connect all the modules and SimCards, increasing the reliability and availability. Professional termination
  • Fully compatible with Prosim v2 and the new v3. It does not require any plugin or addon, it is integrated with Prosim (Prepar3D or FSX)
  • Fully compatible with X-Plane11 + Zibo 738X through the application OrbitXP
  • Free SC-Pascal Scripts ready to be used to connect it with other addons such iFly737 (Prepar3D or FSX)
  • Shipped in a wood box custom-made

Note: MCP & EFIS not included

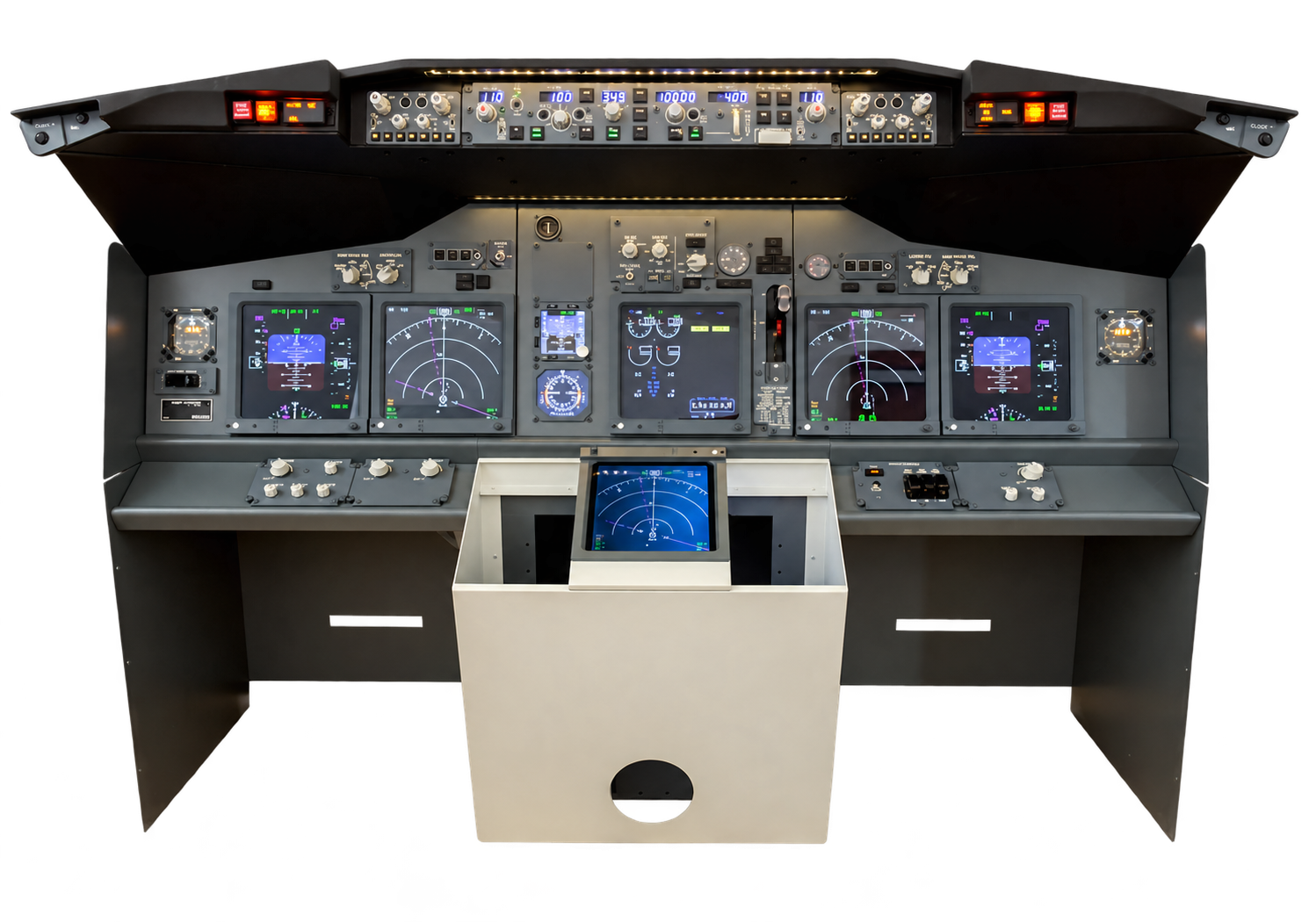

Component of the following Simulators

Equipment Measurements

Handling Measurements

Software Compatibility

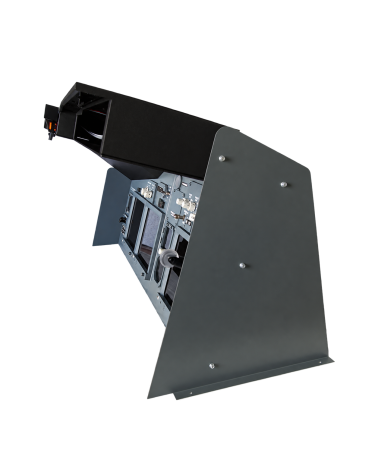

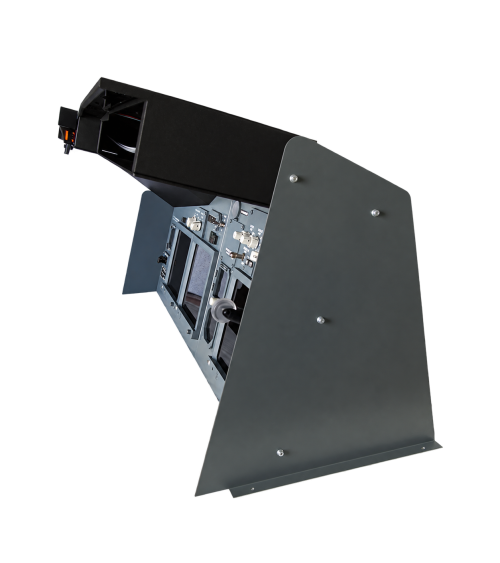

Metallic Structure

The most robust and accurate structure of the market. Fully Compatible with the FBC Cockpit.

You can select between MIP structure and MIP in Sigle Configuration structure.

Aluminum Glareshield

The full Glareshield is made in aluminum painted in matte black to provide a realistic and very professional termination.


TFT Monitors fully installed and integrated

The TFTs of the Main Displays are fully mounted and ready to be connected with your Computers.

Low Display is optional (10.4")

EDC Module with Replica Lever (Option)

The EDC can be selected with dual concentric rotaries-encoders and the switch "" with replica of the lever & cap.


Ethernet Bus

As other Plug&Fly Sismo Modules, the MIP is powered by the SimCard SC-MB Ethernet, which uses Ethernet bus to stablish the communication with the Software. This bus is very stable and it is used in the Professional market, due to USB is not enough stable when many devices are connected. If you are using ProSim v2 with FSX or Prepar3D, the card is automatically detected and the MIP works without any additional software.

Backlighted with input for dimming

The MIP includes backlight (Warm White) in all the modules, including dimmer that can control also the dimmer of the MCP and EFIS.


Modules & Parts

ID Ref Type Component / Module Rel. Line Un
C01 S737-MIP-A-NL-A10-0123 Casing MIP Casing for Single Configuration without stand, including Aluminum Glareshield Black V3 1
C02 S737-MIP-C-NL-A20-0184 Component Captain Glarewing with MIC/CLOCK module (this module is dummy) V2 1
C03 CGEN-PCC-RR-5503 PC Comp DU TFT Monitors with VGA Interface 2
C04 S737-MIP-C-NL-A20-0152 Component Flight Deck Lighting under Glareshield V2 1
C05 S737-MIP-C-NL-A20-0153 Component MCP/EFIS Lighting under Glareshield V2 1
C06 S737-MIP-C-NL-A10-0144 Component Backlight Dimmer for MIP Backpanel V1 0
C07 S737-MIP-C-NL-A10-0132 Component Metal Display Bezel V1 3
C08 CGEN-SCO-RR-2621 Sismo Comp Display Smoke Glass V1 3
C09 CGEN-SCO-RR-2614 Sismo Comp Metal DZUS (fastener) with screw V1 0
C10 S737-MIP-C-NL-A10-0137 Component Captain Instrument Panel Annunciators Kit (3 Units) V1 1
C11 S737-MIP-C-NL-A10-0139 Component Center Instrument Panel Annunciators Kit (9 Units) V1 1
C12 S737-MIP-C-NL-A10-0151 Component Landing Gear Lever + Panel + Backlight V1 1
C13 S737-MIP-C-NL-A10-0147 Component MIP Light Test Module V1 1
C14 S737-MIP-C-NL-A10-0140 Component Stab Out of TRIM Annunciator V1 1
C15 S737-MIP-G-NL-A20-0130 Gauge FLAPS Gauge with backlight V2.1 1
C16 S737-MIP-P-NL-A10-0116 Panel ASI & Altimeter Bezel V1.1 1
C17 S737-MIP-P-NL-A10-0118 Panel Dummy Clock V1.1 1
C18 S737-MIP-P-NL-A10-0120 Panel Dummy Yaw Dumper V1.1 1
C19 S737-MIP-P-NL-A10-0113 Panel RMI Indicator Bezel V1.1 1
C20 S737-MIP-P-NL-A10-0111 Panel SELCAL ID Panel V1.1 1
C21 S737-MIP-P-NL-A10-0117 Panel Standby Blind Plate V1.1 1
C22 S737-MIP-M-AL-A35-0157 Module Autopilot Flight Director System Module (AFDS) V3.5 Alpha 1
C23 S737-MIP-M-AL-A30-0154 Module Captain Display Selector Module (DS) V3 Alpha 1
C24 S737-MIP-M-AL-A20-0166 Module Captain SixPack Module + Master Pushbuttons V2.1 Alpha 1
C25 S737-MIP-M-BL-A35-0158 Module Engine Display Control Module (EDC) V3.5 Bravo 1
C26 S737-MIP-M-AL-A10-0156 Module Nose Wheel Steering Module (NWS) V1 Alpha 1
C27 C737-STK-RR-6203 Sticker&Serigr. CAIP Do Not Extend Sticker 1
C28 C737-STK-RR-6205 Sticker&Serigr. Yaw Damper Sticker 1
C29 S737-MIP-B-AL-A36-0179 Board CAIP Electronic Backpanel V3.6 Alpha 1
C30 S737-MIP-B-AL-A35-0177 Board CEIP Electronic Backpanel V3.5 Alpha 1
C31 CGEN-WIR-RR-5310 Cable Ethernet Cable 3m 1
C32 CGEN-POS-RR-6705 Power Supply Power Supply 12V 5A 1

Data sheet

Warm White (12V)
Ready to be Connected
Yes (Ethernet Port)
Product Lines
User Manual
O.S. Compatibility
Windows XP, Windows 7 (32/64), Windows 8 (32/64), Windows 10 (32/64)
Add-Ons Compatibility
Prosim:737, iFly737
FS Software Compatibility


MIP V3 script for Prosim737

737NG MIP V3 script for Prosim737 - Rev3.3

Download (2.7MB)

MIP V3 script for iFly

737NG MIP V3 script for iFly - Rev3.2

Download (2.71MB)

SC-MB Configuration - Rev1.7

User Manual - SC-MB Configuration - Rev1.7

Download (1.94MB)

FS Connections Layout-Rel1

Sismo Flight Simulator P&F Modules Ethernet. Layout connecting PCs and Flight Simulator Modules

Download (630.2KB)

User Manual - MIP - Rev3.1

User Manual - MIP Ethernet - Rev3.1

Download (820.83KB)
