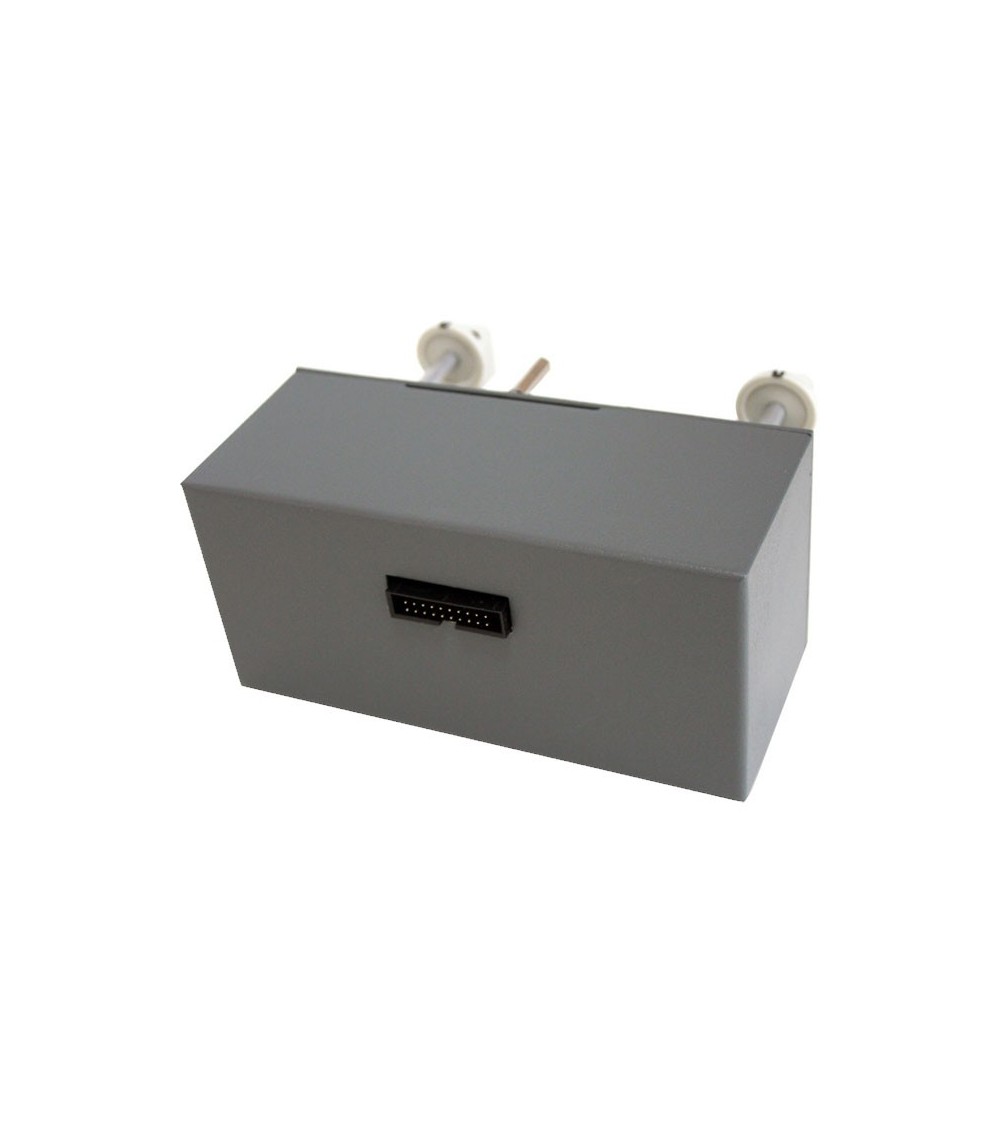

Magnetic Rotaries Engine Start Module

€ 273.90
Tax excluded

Magnetic Rotaries Engine Start Module for the Boeing 737NG & 737MAX Simulators

Backlighting
Quantity

Key Characteristics

Customized Options

  • Aluminum casing with the mechanins, electronic, connections.
  • Printed Circuit Board (PCB).
  • One connector to control the module.
  • Electronic board to protect the solenoid.
  • Two Injection Plastic Knobs K1 fully mounted.
  • No soldering required.
  • Solenoid consume: 12V 2A
  • Measurements (HxWxD): 7.4 cm x 15.6 cm x 6.5 cm
  • Free of glue or other component not recommend for the assemble
  • Fully assembled. Ready to be used.
  • High quality.
  • Compatible with most of the I/O Boards of the market.
  • Ready to be connected to your SimCard Ethernet or your favourite card.
  • Ready to be connected with the electronic FWD Overhead Baseplate (Sismo Innovation).
  • Extra: PCB for backlight and toggle switch
flatcable_100.png Flat Ribbon Cable included (20 cm)
OptionValuesDescription
Backlighting No included
Included  Warm White (12V)
S7NG-FOH-C-AL-A10-0542

Data sheet

Backlight
Optional
Ready to be Connected
Yes (IDC Connectors)
Customizable
Yes
Flat Ribbon Cables
Yes, 1 cable 20cm lenght. For other lenght, send email to info@sismo-soluciones.com
I/O Electronic Compatibility
SimCard Ethernet (recommended), IOCard USB
Documentation
Datasheet
Version
V1.1

Download

FWDO Electronic Baseplate V2

Datasheet - Electronic Baseplate FWD V2- Rev1.1

Download (953.45KB)

FWDO Mag Eng Starter Module V1.1

Datasheet FWD Overhead Magnetic Engine Starter Module V1.1 - Rev1.2

Download (1007.24KB)
