MCP Module Ethernet for the Boeing 737NG Simulators
MCP Module 737 NG Ethernet
MCP Module Ethernet for the Boeing 737NG Simulators
$ 999.43
Tax excluded
SISMO · FLIGHT SIMULATOR HARDWARE
Ref. S7NG-MCP-F-AL-A50-2027MCP Module 737 NG Ethernet
Fully assembled Ethernet mode control panel for Boeing 737 NG simulator cockpits, available in Alpha and Bravo configurations.
✈ Boeing 737 NG
01 / Key Features
Full-scale (1:1) module.- 6 mm laser-cut and engraved acrylic panel.
- Metal casing in grey RAL 7011.
- Warm-white LED backlighting, ready for dimming.
- Injection-moulded plastic replica knobs.
- Printed circuit board (PCB) with components mounted.
02 / Integration
- Fully assembled and ready to use.
- Available in Alpha and Bravo configurations.
- 12 V power supply.
03 / Connections
- Ethernet communication through the SimCard SC-MB Ethernet.
- Captain-side EFIS connection in both versions; use the matching EFIS line.
- F/O-side EFIS connection in Alpha only.
- Backlighting can connect to the SISMO MIP dimmer.
04 / Software Compatibility
- ProSim v3 or later: integrated support with Prepar3D and MSFS 2020/2024; no additional plugin required.
- Zibo 738X: X-Plane 11/12 through SismoLink V2 or later.
- PMDG: Prepar3D and MSFS 2020/2024 through SismoLink.
- iFly 737NG: free SC-Pascal scripts available for Prepar3D or MSFS.
MSFS 2020
MSFS 2024
X-Plane 11 / 12
PMDG
ProSim:737
Zibo 738X
iFly
Prepar3D
Please note: Bravo Line cannot be upgraded to Alpha Line. Select the required configuration before ordering. Software compatibility requires the integration software listed above.
05 / Alpha & Bravo Comparison
| Feature | Bravo Line | Alpha Line |
|---|---|---|
| 6 mm front panel, metal casing and Ethernet | Included | Included |
| 12 V power supply and SC-Pascal scripts | Included | Included |
| Warm-white backlighting, ready for dimming | Yes | Yes |
| Injection-moulded replica knobs | Yes | Yes |
| Button legend and bar lighting | One light for the white legend and green bar | Separate lights for the white legend and green bar |
| Heading / bank angle selector | Single knob with push-button | Dual concentric rotary encoder with dual knob |
| A/T toggle switch with solenoid | No | Yes |
| Captain-side EFIS connection | EFIS Bravo Line | EFIS Alpha Line |
| F/O-side EFIS connection | No | Yes |
| SPD INT and ALT INT push-button inputs | No | Yes |
| Fully assembled Plug & Fly module | Yes | Yes |

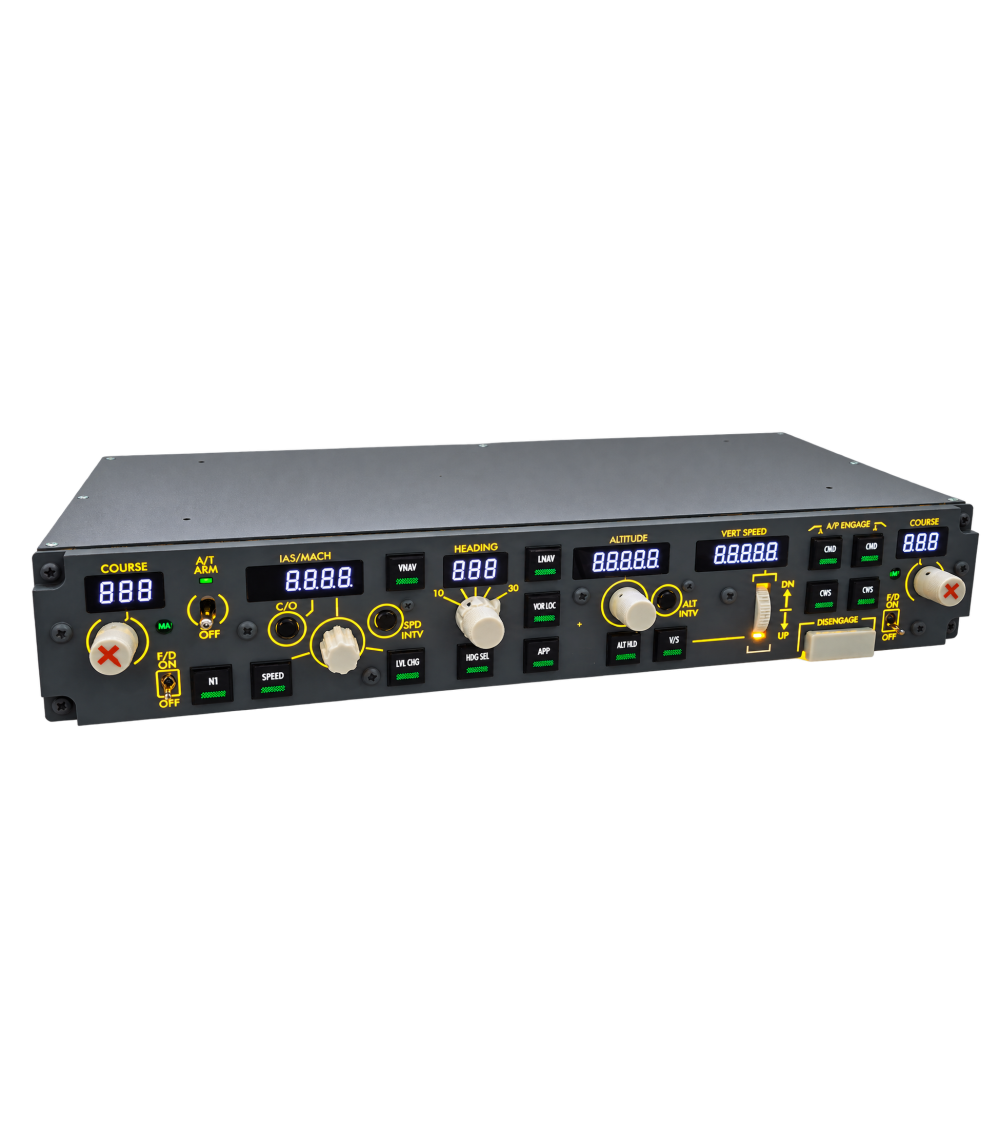

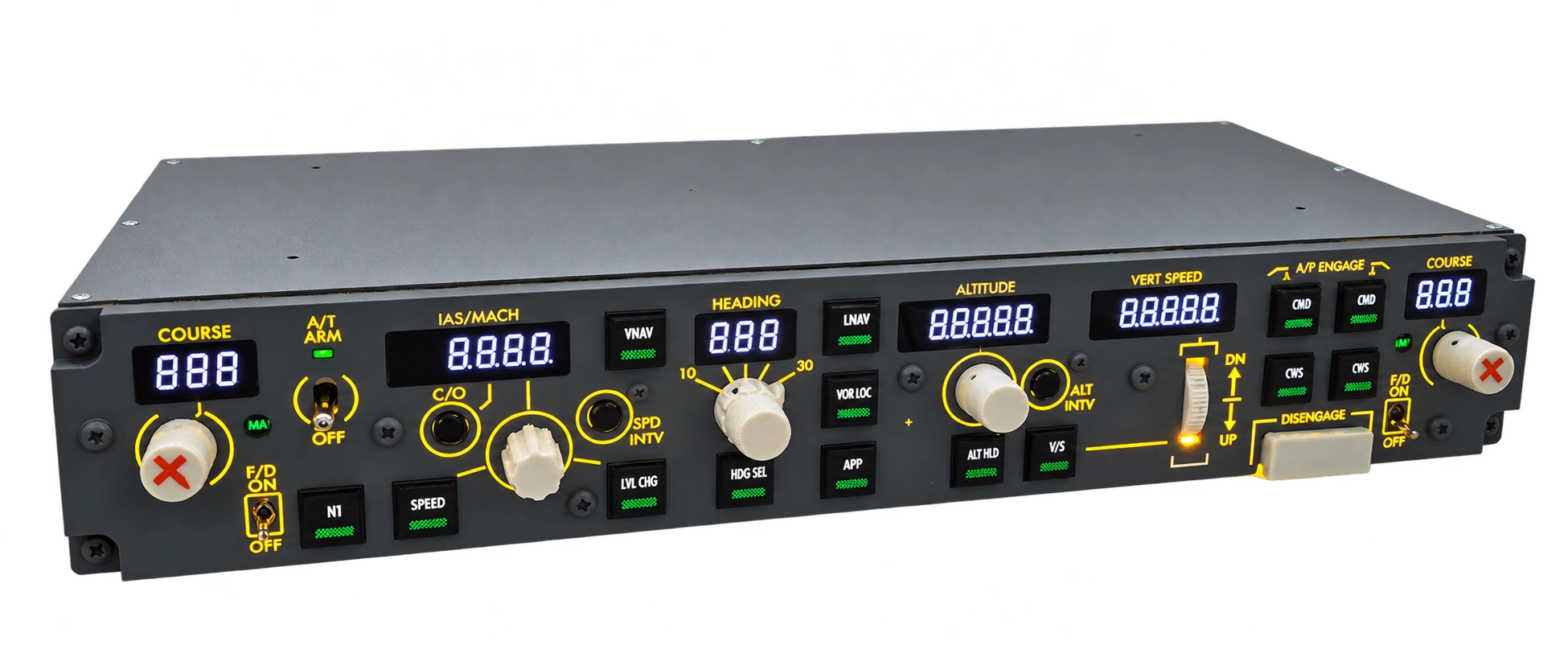

06 / Module Overview
Select the image to view it at full size. Features depend on the selected product line.
07 / Video
08 / Unpacking Video
09 / Construction Details
A/T ARM magnetic switch
Alpha Line includes a solenoid-operated A/T ARM switch.
Replica knobs
Injection-moulded plastic knobs based on the original controls.

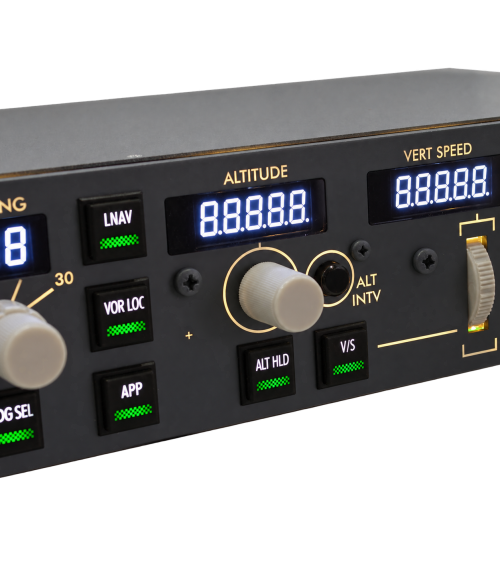

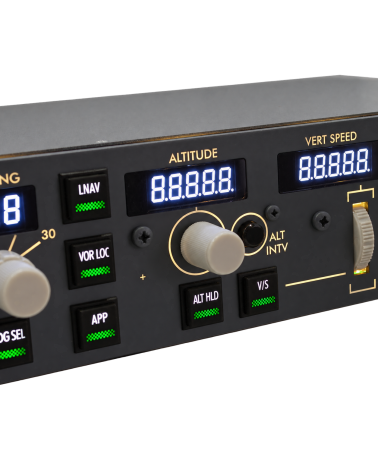

White button legends
Alpha has separate illumination for the legend and activation bar. Bravo uses one light for both.
Green activation bars
On Alpha, the lower bar illuminates when the associated function is selected.
Heading / bank angle selector
Alpha uses a dual concentric rotary encoder; Bravo uses a single knob with push-button.
Ethernet connection
The integrated SimCard SC-MB Ethernet provides communication with the simulator software.
Dimmable backlighting
Warm-white LED backlighting can connect to the SISMO MIP dimmer.
S7NG-MCP-F-BL-A46-2028
Data sheet
- Backlight
- Warm White (12V)
- Version
- V4.6
- Ready to be Connected
- Yes (Ethernet Port)
- Customizable
- No
- Documentation
- User Manual
- Bus
- Ethernet
- Product Lines
- Alpha
- Power Supply
- Included
- Input Power
- +12Vcc
- Measurements (WxDxH)
- 470 x 210 x 80 mm
- O.S. Compatibility
- Windows XP, Windows 7 (32/64), Windows 8 (32/64), Windows 10 (32/64)
- Add-Ons Compatibility
- Prosim:737, iFly737
- FS Software Compatibility
- FSMS, P3D, Zibo X-Plane
- LED Display Color
- White
- Display Surface Color
- Black
